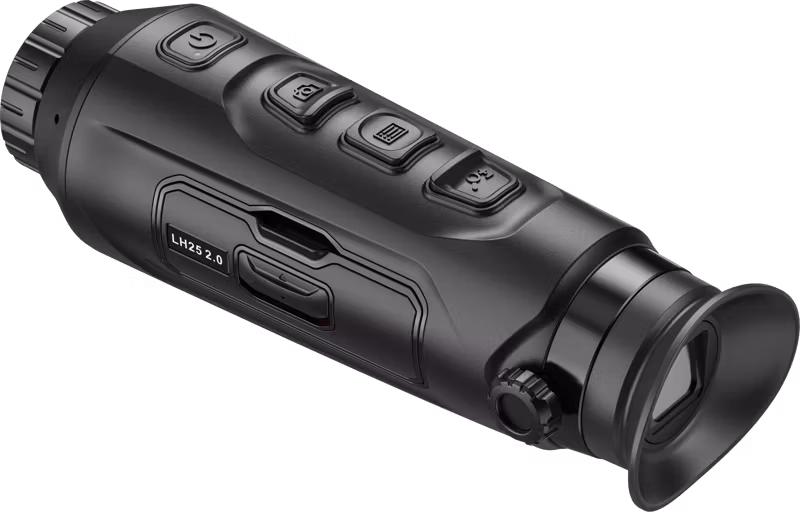

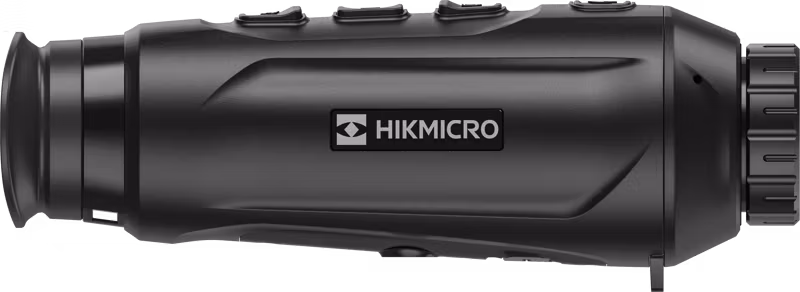

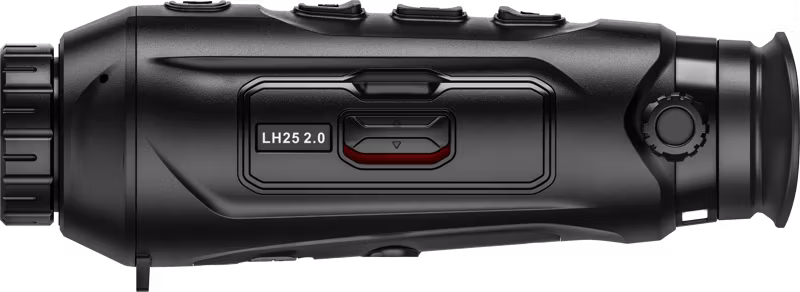

HIKMicro - HM-TS03-25XG/W-LH25
Handhållen termisk monokulär kamera - Värmekamera - helt otrolig bildkvalitet till ett riktigt vasst pris
Thermal Module
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution: 384×288
- Frame Rate: 50Hz
- Pixel Interval: 12μm
- Response Waveband: 8μm to 14μm
- NETD: Less than 35 mK (@25°C,F#=1.1)
- Focal Length: 25 mm.
- IFOV: 1.13 mrad
- Field Of View: 10.5° × 7.9° (H × V)
- Aperture: F1.0
- Magnification: 2.45 to 19.6
- Monitor: 0.4 inch, LCOS, 1280 × 960
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction): Auto, Manual, External Correction
- Digital Zoom1 ×, 2 ×, 4 ×, 8 x
- Smart Function
- Hot Track: Yes
- Standby mode: Yes
- Detection Range: 1180 m.
System Function - Storage: Built-in memory module (8 GB)
- Record Video: Yes (On-board video recording)
- Capture Snapshot: Yes (On-board image capturing)
- Wi-Fi: Yes
- Standby Mode: Yes
Battery
- Battery Type: Rechargeable Lithium Battery
- Battery Operating Time: 7,5 hours continuous running with Wi-Fi hot spot function off (@25°C) 6 hours continuous running with Wi-Fi hot spot function on (@25°C)
- Battery Capacity Display: Yes
General
- Power: 5 VDC/2 A, 1.5 W, Type-C Interface
- Work Temperature/Humidity: From -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less
- Protection Level: IP67
- Dimension: 171 mm × 61 mm × 57 mm (6.73" × 2.40" × 2.24")
- Weight: 300 g (0.68 lb)
